EasyRose Deep Fryer Filter Machine, Commercial Mobile Oil Filter System For Restaurant, 48L, 1/2 Hp

Parameters:

• Voltage: AC110V / 60Hz
• Motor Power: 1/2 HP
• Oil Capacity: 48L
• Power: 370W
• If do not use oil filter powder, will recommended temperature  80-100℃
• But if use of oil filter powder, will recommended temperature 120-130 ° C
• Machine Dimensions: 30.9"x17.3"x13.8" / 890x420x360 mm
• Oil cylinder diamension: 24.8"x13.9"x8.7" / 630x355x220 mm
• Volume of Flow Rate: 12L/min
• Filter Paper:1 pcs/ once (comes with 5pcs filter paper)
• Filtration Density: 20um
• Oil Filter Paper Size: 15.0" x 11.0" / 382 x 280mm

Usage:

1. Put the filter mesh
2. Put the filter paper under pressing frame
3. Fold the edge of paper with frame
4. Put paper and frame into filter chamber
5. Put filter powder on paper
6. Move the machine to fryer and lock the breaks


Features:

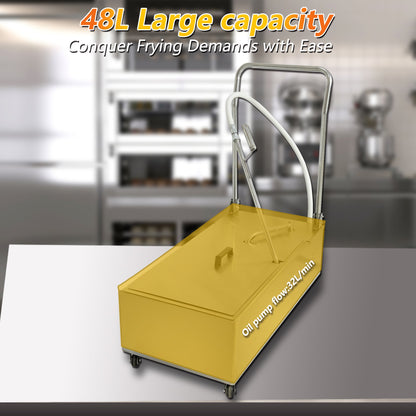

• 48L Large capacity: The fryer oil filter adopts a large oil capacity: 48L, with an average oil filtration capacity of 12L/min, can quickly complete oil filtration in a short period of time, which can effectively help save oil costs.
• Food Grade Material: Our Hakka mobile fryer filter is made of food grade 304 stainless steel for durable and solid usage.
• Effective Filtration: Equipped filter paper with filtering mesh can be effectively get rid of the tiny floating particles, so to get the clean oil.
• Convenient Movement: This filter is equipped with 4 rota-table casters to provide a flexible movement for more convenient and easy to use.
• Easy to Clean: Parts can be take apart for easy cleaning and the stainless steel surface save your cleaning time.
• User-friendly Design: Comes with the hose and oil suction tube to avoid greasy and keep your hand clean.  The lid can be prevents splashes and dust from entering.
• The oil cylinder is detachable, but it does not have an oil drain valve. The oil filter bag can filter out finer residues.

1. Oil Filter Cart Product Manual.PDF
2. Oil Filter Cart LYC-03 Spec Sheet.PDF
